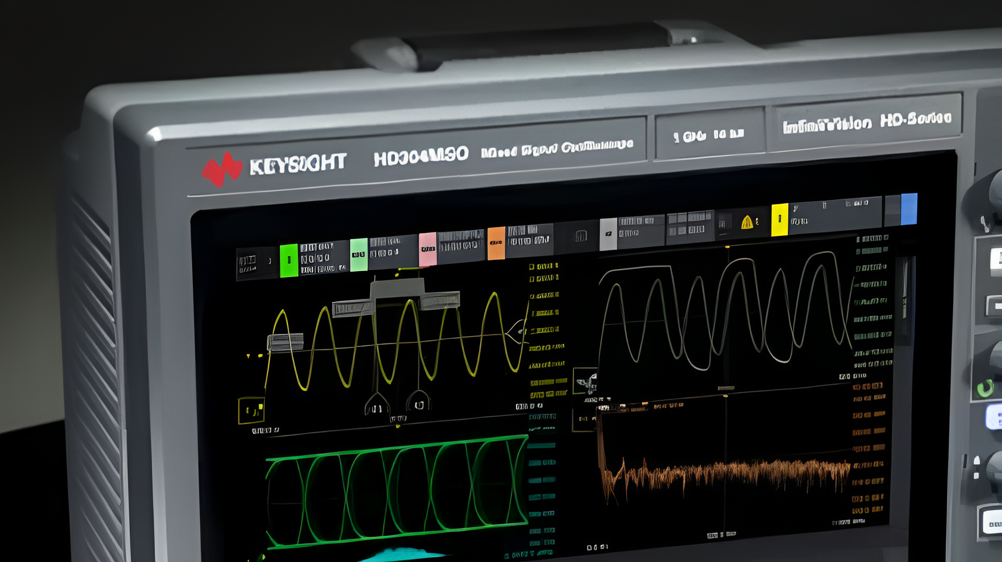

Designed to deliver four times the signal resolution and half the noise floor of other general-purpose oscilloscopes the device has been newly designed and built from the ground up with a custom application-specific integrated circuit (ASIC) and deep memory architecture. Consequently, the HD3 Series enables engineers to quickly detect and fix signal issues in a variety of applications.
Device and component designs are becoming more complex, using signals that are increasingly smaller. To ensure product quality and maximise product yields, engineers need to be able to troubleshoot designs by tracing multiple signals at once to identify the smallest signal errors that indicate design flaws and hardware defects.
Engineers need an oscilloscope that can measure the smallest and most infrequent signal glitches beyond the noise to correct product issues.
Keysight’s HD3 Series oscilloscope looks to meet this challenge by giving digital designers and engineers the highest vertical resolution through a 14-bit ADC and a 50 µVRMS low noise floor that can detect the smallest signal anomalies.
Covering bandwidths between 200 MHz and 1 GHz, the HD3 Series accelerates digital debugging and time to market offering:
- 14-bit ADC resolution and low noise floor in combination with an uncompromised 1.3 M waveforms / second update rate for all measurements, enabling quick and accurate debugging.
- Features a custom-built ASIC that gives engineers higher sample rates and memory under typical testing conditions, an uncompromised waveform update rate, high vertical resolution, and hardware-based functions such as mask, zone, and serial decode.
- Captures longer time spans at full sample rate for better measurement / analysis results.
- Offers an all-new user interface enabling versatile functionality, including full ADC and vertical resolution on every channel, several bandwidth limiting options, HD mode support, and custom measurement thresholds.
- Introduces automatic fault hunter software for general debugging, which analyses glitches, slow edges, and runts while engineers complete other tasks. Engineers can also automate measurements with a large selection of serial bus protocols and application software.
- Provides immediate bandwidth, memory, and feature upgrades through software licensing, enabling designers to purchase options they need now and upgrade as their designs evolve in the future without having to return the instrument to the factory.
According to Robert Saponas, Vice President and General Manager, Keysight Digital Photonics Centre of Excellence, “Recognising the need of engineers for quick and precise measurements for a variety of applications, we built the InfiniiVision HD3 from the ground up to deliver an exceptionally precise general use oscilloscope. With a custom ASIC, 14-bit ADC, and half the noise floor, the HD3 Series oscilloscope delivers the precision and accuracy needed to identify the smallest and most infrequent signal glitches during design debugging to accelerate time to market.”
