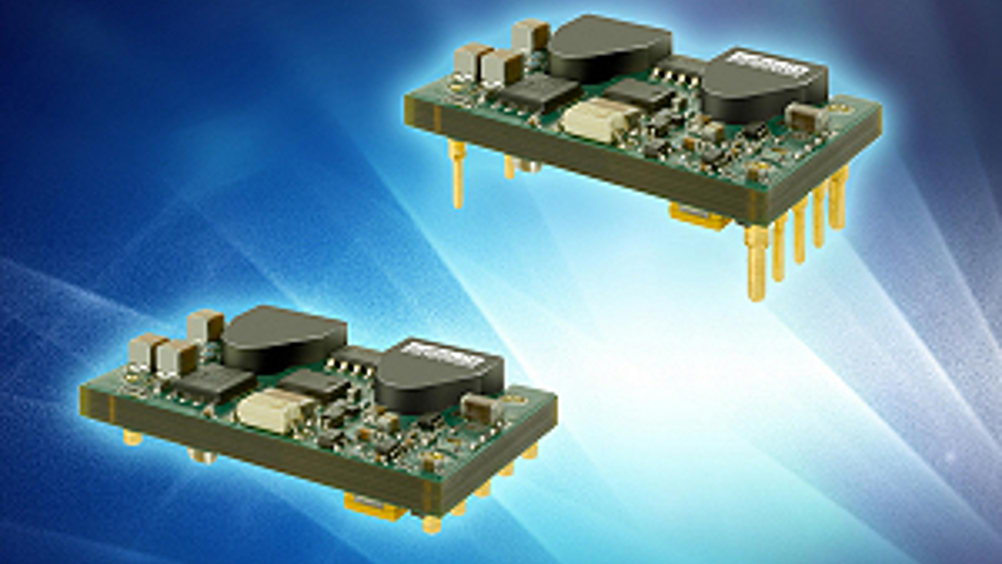

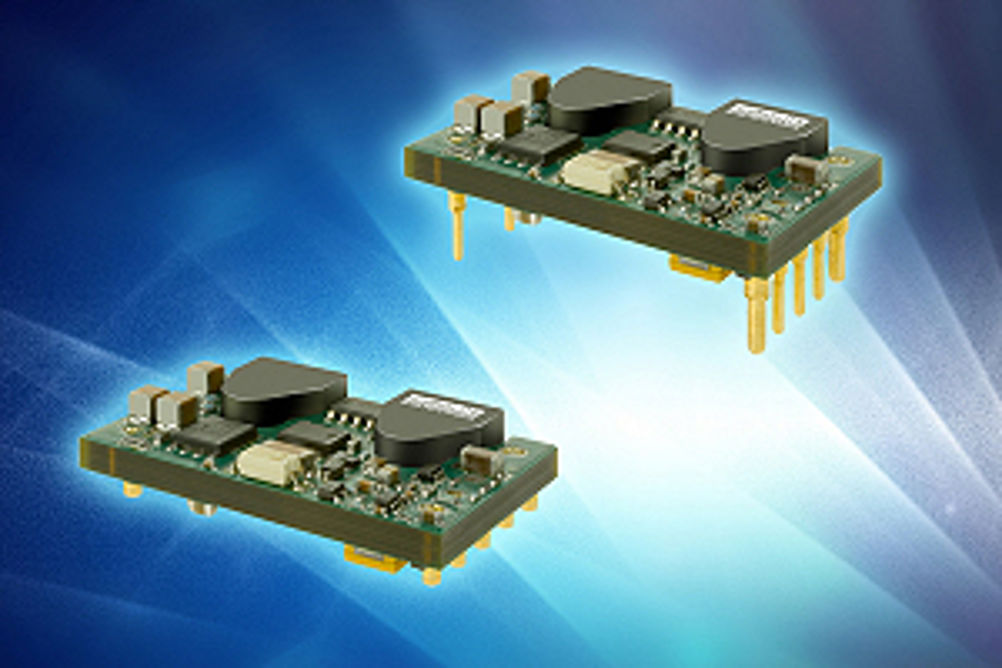

100W dc/dc converters available in 1/16th brick package

Designed for use in distributed or intermediate bus power architectures, the devices are available in an industry standard 1/16th brick package and are said to open up opportunities for designers needing to maximize power density where board space and efficiency are top priorities. The ULS series delivers efficiency's up to 92% on the 12Vout model and 91% on the 3.3 and 5Vout models. Standard features include an input voltage range of 36 to 75V, up to 2250VDC, remote on/off control, over temperature protection, over current protection and input under voltage protection. The output can be trimmed up or down by ±10% in order to make up for load losses or to suit special application requirements. The modules include output voltage sense pins that maintain output regulation to within ±0.2% across all input line and load conditions. The ULS 100W series has been designed for high reliability applications such as datacom/networking, wireless networks, optical network equipment, server and storage. The modules are offered in either through hole or SMT versions and are rated for operation from -40 to 85°C.
