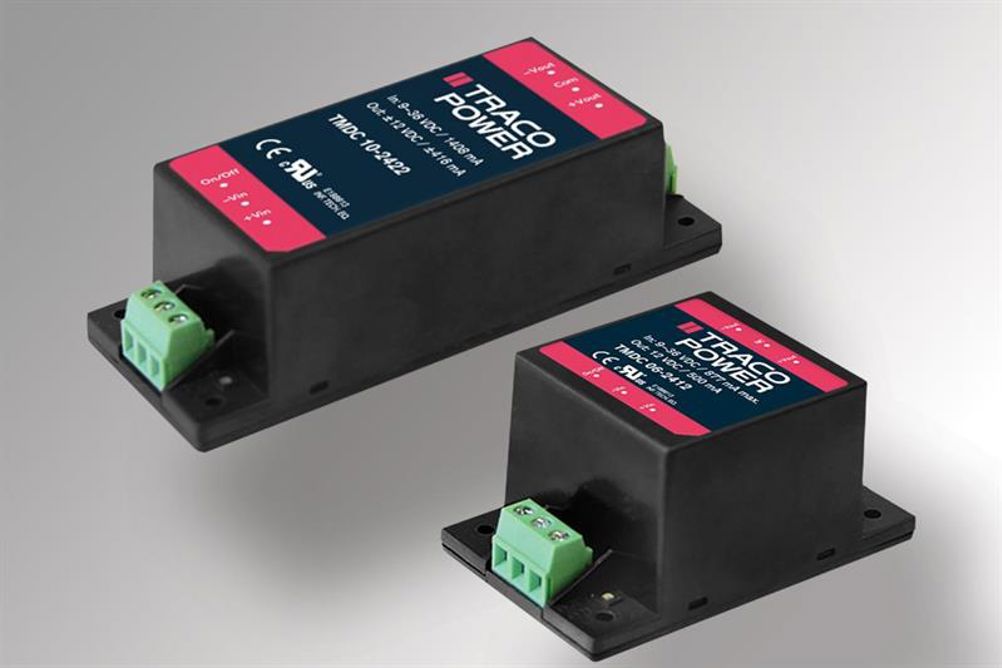

These DC/DC Converter modules are fully encapsulated with terminal strip connections and equipped with integrated filters which limit conducted and radiated emissions (EN 55032 class A) and increase the modules EMC immunity (EN 55035) without the need for any external components.
The 6 watt TMDC modules measure only 2.09” x 1.34” x 1.04” and the 10 watt TMDC 10 modules measure only 3.11” x 1.34” x 0.87”.
Each family consists of 14 modules offering either 9-36 or 18-75 VDC input ranges and outputs of 5 / 12 / 15 / 24 / ±12 / ±15 / ±24 VDC with high efficiency operation up to 86%. Remote ON/Off control and Power Good LED Indicator round out their functionality.
Full-load convection-cooled operation from -40°C to +80°C, high reliability >4.1 million hours and international safety approvals to UL 62368-1 with CB Report make these modules suitable for a wide range of industrial applications and environments.
Products are in stock and available through distributors around the globe with manufacturing lead times of 12-14 weeks.
