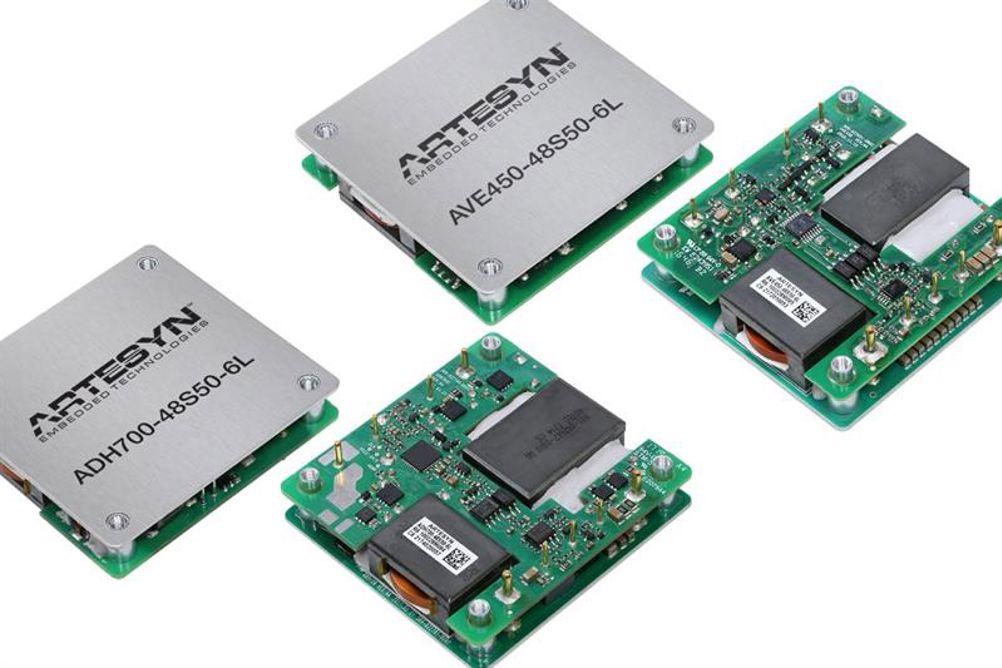

The AVE450, AVE500 and ADH700 modules are rated at 450W, 500W and 700W respectively. Each features a high power density open frame design in a telecom industry-standard half-brick format, with an optional aluminum baseplate for thermal performance.
According to the company, the AVE450 series offers a typical efficiency greater than 95% and can deliver up to 10A. Meanwhile, the ADH700 and AVE500 series have a typical efficiency in excess of 94.8% and deliver up to 14A.
The modules offer an output voltage trim range from 25V to 57V, with features such as remote control, low ripple and noise; input under voltage lockout, output over current protection, output over voltage protection, and over temperature protection.
All models can operate between -40 and 85°C and operate at full power at baseplate temperatures of up to 100°C.
