The antenna beams in these products can be adjusted remotely and continually to react to changing traffic patterns and environmental conditions benefitting communication networks that require continuous wireless signal optimisation. These include mobile, WISP, Wi-Fi, GSM, UMTS, LTE, 5G, public safety, smart cities and industrial networks.

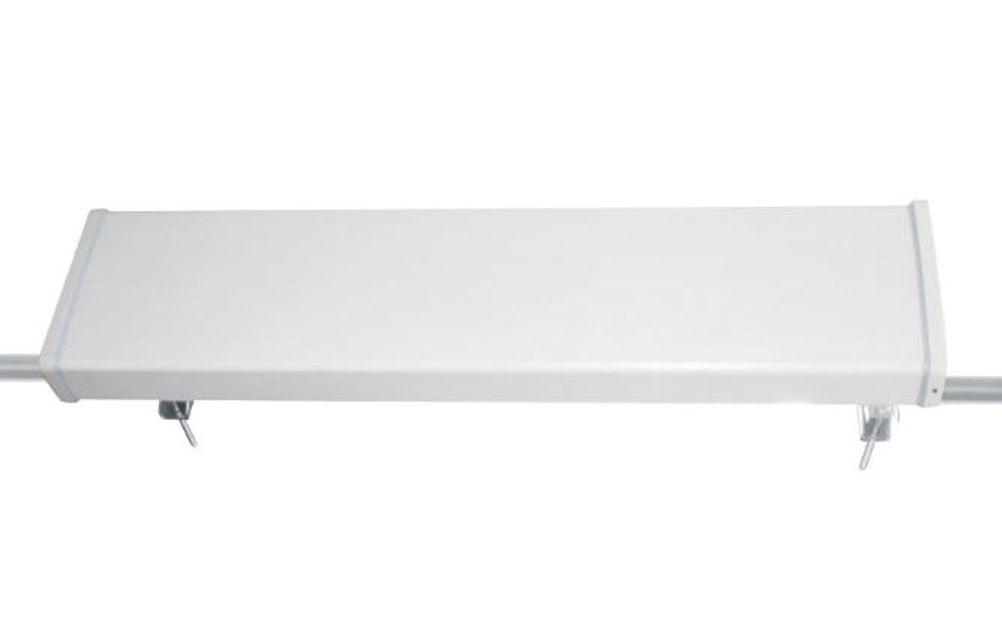

The antennas come in two versions. The 694 MHz to 960 MHz RET omnidirectional antenna has 11 dBi gain, 2-14° RET, rooftop mounting and two connectors. The 1710 to 2690 MHz RET sector antennas have 18 dBi gain, 2-12° or 0-10° RET, down-tilt mounting brackets, and options of two, four or six connectors.
Both versions, however, share many features. All are 45-degree slant and can be manipulated using a handheld controller or a base station radio with integrated AISG 2.0. This enables the tilt angle of the antenna’s coverage pattern to be adjusted remotely, optimising the coverage and signal propagation without having to physically reposition the antenna.
All the new RET sector and omni antennas minimise interference with low-PIM 4.3-10 female connectors rated at either -150 dBc or -153 dBc. They both have a maximum input power of 250 watts and a maximum input VSWR of 1.5:1. In addition, the antennas’ fiberglass radome construction enables them to withstand harsh conditions.
The 1710-2690 MHz antennas have multiple bands operating − from 1710-1990 MHz with 17.6 dBi gain, 1920-2200 MHz with 17.8 dBi gain, 2200-2490 MHz with 18.2 dBi gain, and 2490-2690 MHz with 18 dBi gain.
Both antennas are now in stock.
