This product provides designers of electronics and telecoms devices with a thermal conductivity of 8.3 W/m-K for superior heat transfer.
Said to have the highest available thermal conductivity in its product family, THERM-A-GAP PAD 80 also maintains low compression forces and conformability between mating surfaces. Very low compression force means the product will deflect under assembly pressure, minimising stress on components, soldered joints and PCB leads.

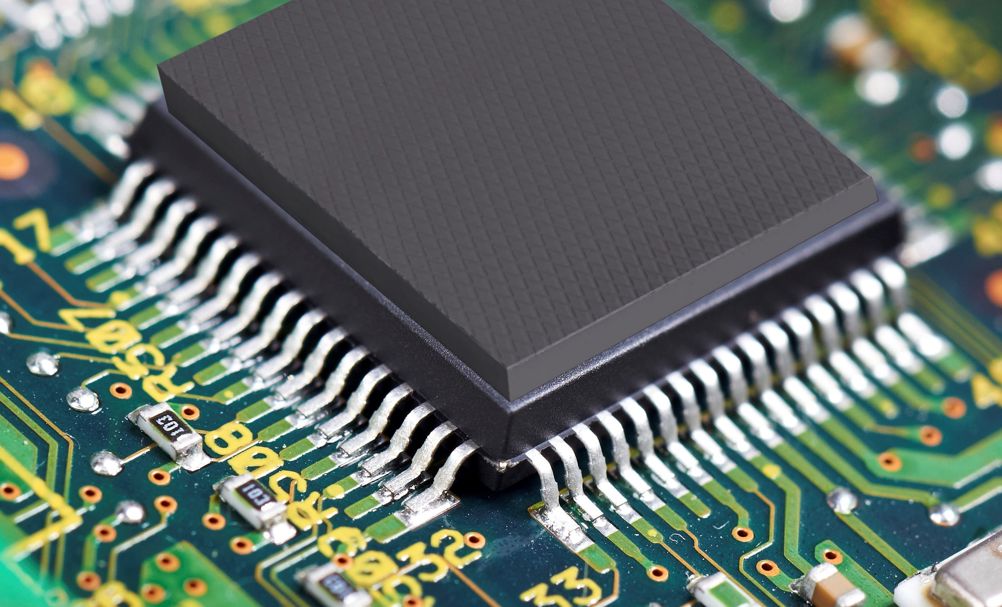

Offering low hardness (40 Shore 00), the elastomeric, vibration-dampening THERM-A-GAP PAD 80 serves as a highly effective thermal interface between heatsinks and heat-generating components in electronic devices where uneven surfaces, air gaps or rough surfaces exist.
The material also exhibits low silicone oil bleeding, thus minimising the potential for greasy residues to accumulate on the surface of the heatsink or substrate during use.
Oil bleed from inferior thermal gap filler pads can promote reduced electrical performance through lower surface resistance and breakdown voltage. Furthermore, surrounding impurities and particles may adsorb in or adhere to the oil, compromising product performance and service life.
Among those set to benefit from the attributes of THERM-A-GAP PAD 80 are manufacturers of 5G and telecom equipment/infrastructure, smart home devices, automotive electronics (including ADAS modules), electric vehicle charging units, power supplies, computing modules like GPUs and CPUs, computer servers, and memory and data storage units.
Offering full electrical isolation, THERM-A-GAP PAD 80 passes NASA’s outgassing requirements and General Motor’s GMW test for reliability.
The high Watt THERM-A-GAP PAD 80 comes in standard thicknesses from 0.5 to 5.1 mm) and is available in sheets or cut to custom part sizes. Parker can provide this soft, easy-to-handle product on several material carriers, including aluminium foil supplied with pressure-sensitive acrylic adhesive (PSA) for added adhesive strength during the assembly process.
