It is designed for systems where precise magnet switchpoints and safety, reliability, or both, are critical, such as those designed to meet the requirements of ISO 26262.
In its normal operating mode, the A1162 functions as a standard unipolar Hall-effect switch. The device output transistor turns on (output signal switches low) in the presence of sufficient magnetic field (>BOP max). The output transistor of the A1162 switches off (output signal switches high) when the magnetic field is removed (<BRP min). Key automotive applications include shift selectors (PRNDL), seat belt buckles and brake sensors.
When the diagnostic feature is enabled, the output of the A1162 provides a square wave output which confirms the device is properly sensing the internally generated magnetic field. As a result, use of the A1162 either eliminates the need for redundant sensors in safety-critical applications or increases robustness in safety-critical applications that might otherwise require redundant sensors (drive-by-wire systems, etc.).
This monolithic IC integrates a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilisation, Schmitt trigger, and short-circuit-protected open-collector output able to sink up to 25 mA. The on-board regulator permits operation with supply voltages of 3.8 to 24 V. It is temperature-stable and stress-resistant, making it especially suited for operation over temperature ranges up to 150ºC (L temperature range).
High-temperature performance is made possible through advanced dynamic offset cancellation techniques, which are able to reduce the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress.

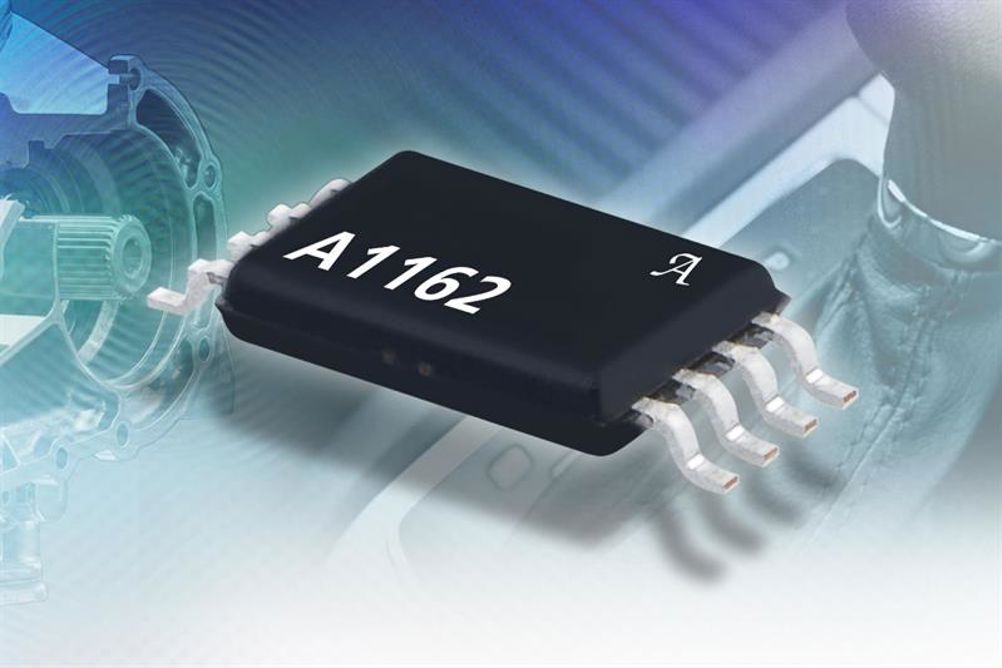

The A1162 is available in an 8-pin eTSSOP package.
