Sponsored by OKW: Extended range of designer plastic enclosures

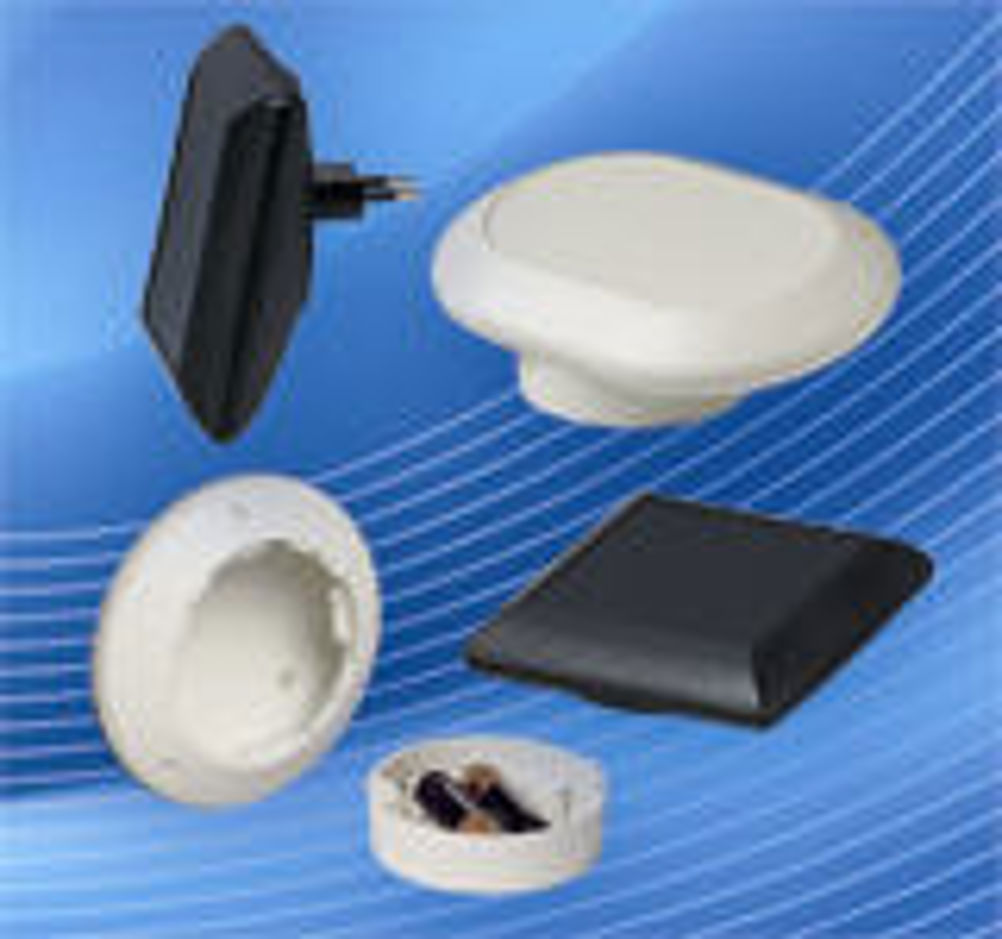

These ergonomic and highly tactile enclosures have been designed to house the latest innovations in OEM and consumer electronics. Typical applications will include detection and monitoring devices, system controllers, home automation, medical and wellness equipment etc. The new rectangular S110 and E160 models have external dimensions of 110 x 110 x 38mm and 160 x 110 x 38mm and are also available with an integrated EURO specification plug according to DIN VDE 0620 part 101. All models in the 'ARTCASE' range can be configured with a series of three different base sections, two of which are inclined at 30^o or 55 ^o. The other base section increases vertical height by 20mm, providing greater internal space for the electronics, and is especially useful for ceiling or wall mounted devices. A separate wall/ceiling mounting kit is also offered which allows the enclosures to be installed without the need to open the case. All parts are moulded in off-white or black ABS (UL 94 HB), with special colours available on request. The top parts can be flat with a recess for a membrane keypad, or domed. The bottom part and deep base will accept a battery compartment for two 1.5V AAA cells. Internal screw pillars are also provided for mounting the PCBs. Standard prices start at £9. OKW can supply 'ART-CASE' enclosures with additional holes for push-buttons, connectors and displays etc., plus silk-screen printed legends and logos, and EMC shielding. For full technical specifications, drawings and ordering information on the 'ART-CASE' enclosures click on the supporting information link below. To learn more visit: http://www.okw.co.uk email: sales@okw.co.uk Tel: 01489 583858
