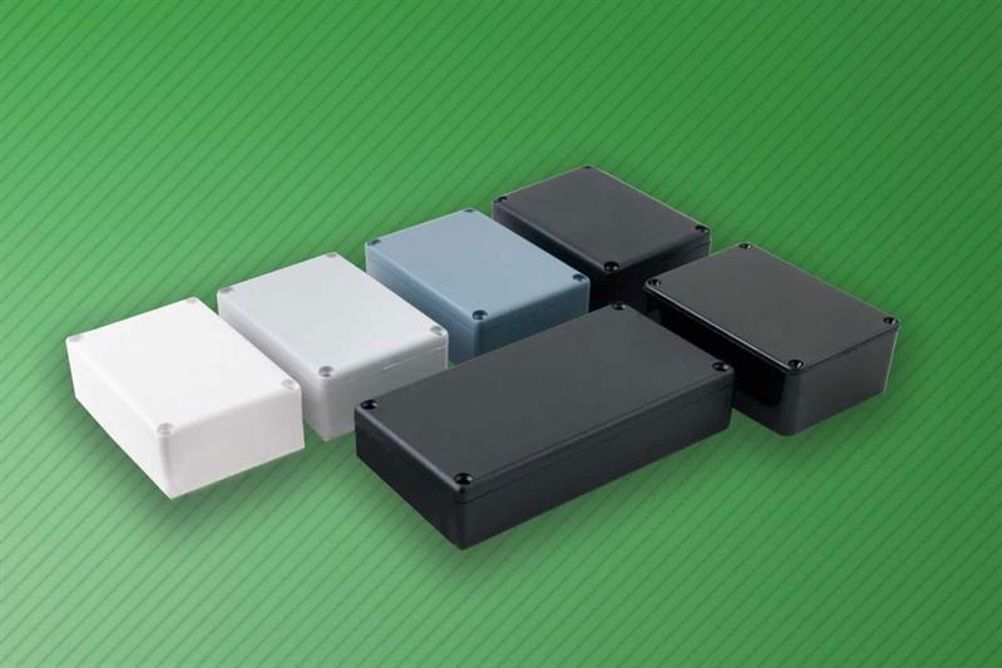

Specifically designed to be a flexible solution for multiple applications, T Series enclosures can be modified by drilling or punching to suit specific customer requirements.
The T Series is supplied complete with lids which are retained with four countersunk self-tapping screws, and is available in six different sizes.
The T1-26 model measures 0mm x 28mm x 18mm and has a wall thickness of 1.0mm; the HBT3 model measures 73.5mm x 51mm x 25.5mm with 1.75mm wall thickness; T2 models are 75mm x 56mm x 25mm with 1.5mm thick walls; the T3 model measures 75mm x 51mm x 27mm, also with 1.5mm walls; T4 enclosures are 111mm x 57mm x 22mm with an increased wall thickness of 2.0mm; the largest enclosure is the HBT4 model at 113mm x 59mm x 24mm, with 1.75mm thick walls.
The T1-26, HBT3 and HBT4 are in a matt finish, whereas the T2, T3 and T4 have a polished finish. Packs of either black passivated countersunk posidrive or zinc plated posidrive screws for lid retention are available separately, all in quantities of 100.
Available standard colours are black, white or light grey, and other RAL colours are available on request. Silk screen printing is also available.
