MXE-200/200i Series withstands industrial grade EMI/EMS, is operable in harsh environments, and reduces TCO with combined controller and IoT gateway
The MXE-200/200i Series’ hardy aluminum housing withstands industrial grade EMI/EMS (EN 61000-6-4, 61000-6-2) and is fully operable under harsh conditions. Meeting a wide variety of specific industrial needs, the exceptionally rugged MXE-200/200i series combines controller and gateway function in one unit, significantly reducing space/wiring and device costs.
The MXE-200 delivers maximum performance with quad-core Intel Atom Processors, and the MXE-200i adds pre-verified IoT functionality to embedded control capability, with full Intel® IoT Gateway support.
Robust and reliable
ADLINK’s MXE-200/200i provides superior construction to withstand industrial grade EMI/EMS (EN 61000-6-4/EN 61000-6-2), making it the most reliable embedded platform for use in harsh environments. The MXE-200/200i also optimizes MTBF with an extended operating temperature range of -20°C to 70°C, outstanding vibration/shock sustainability of 5 Grms and up to 100 G, and long-term availability.
Ideal Industrial IoT-ready platform
Full support for the Intel® IoT Gateway, integrated Wind River® Intelligent Device Platform XT, and McAfee Embedded Control, and ADLINK’s proprietary SEMA Cloud solution all maximize manageability and security for the MXE-200i, protecting customer assets and increasing business value for a world of applications. The MXE-200i’s proven versatile connectivity for wired & wireless communication delivers the benefits of the most reliable ready-to-use M2M solutions.
Versatile connectivity

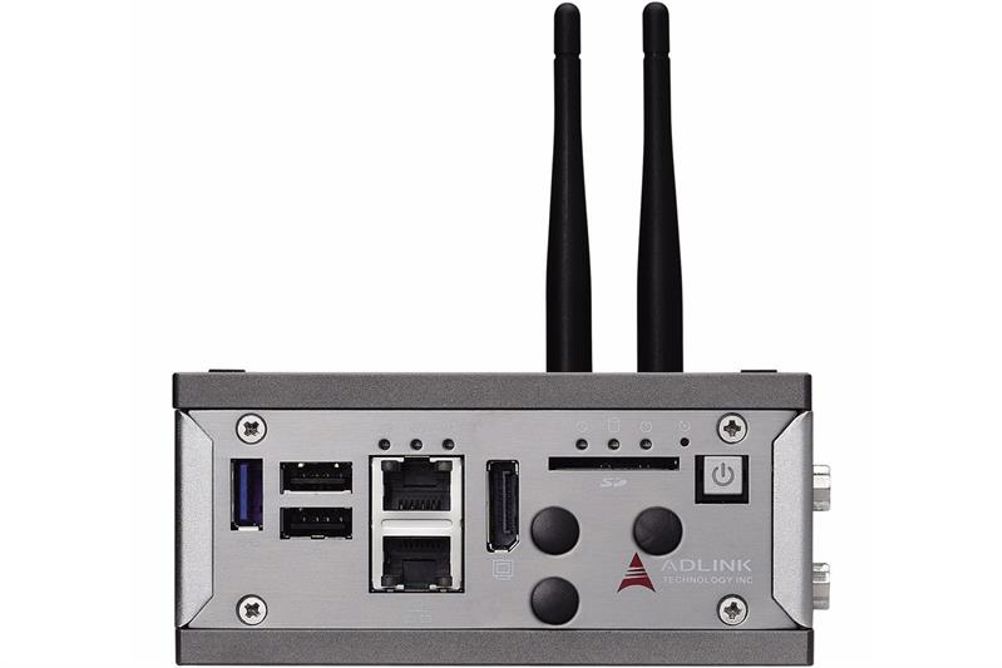

ADLINK’s MXE-200/200i features reliable I/O design including two GbE LAN, two COM, two USB 2.0 and one USB 3.0 host ports, four optional isolated DI and four isolated DO w/ interrupt support, dual mini PCIe slots with one mSATA support and USIM socket support communication with connections such as WiFi, BT, 3G and LTE, to ensure interoperability between systems and maximum industrial connectivity to meet specific industrial needs.
“ADLINK understands that customers require readily available solutions. In addition to providing a powerful embedded platform in ultra-compact enclosure, ADLINK’s exclusive remote management software SEMA/SEMA Cloud seamlessly integrates massive collections of linked elements, empowering distal analysis and intelligence operations. “
The MXE-200/200i series presents an intelligent, robust embedded system supporting versatile application development and easy service deployment, making it ideal for Industrial Automation, Intelligent Transportation, In-Vehicle Infotainment (IVI) systems, M2M (Machine to Machine), and IoT (Internet of Things) applications.
Note: The ADLINK MXE-200 Series models MXE-201 and MXE-202 are equipped with quad-core Intel Atom Processor E3845 and dual-core Intel Atom Processor E3826 respectively, and the MXE-202i with dual-core Intel Atom Processor E3826 with Wind River® IDP XT 2.0 preloaded.
