RDS Announces NLT technologies Ltd Industrial Hi-Bright Seven and Eight inch TFT panels.
1 min read

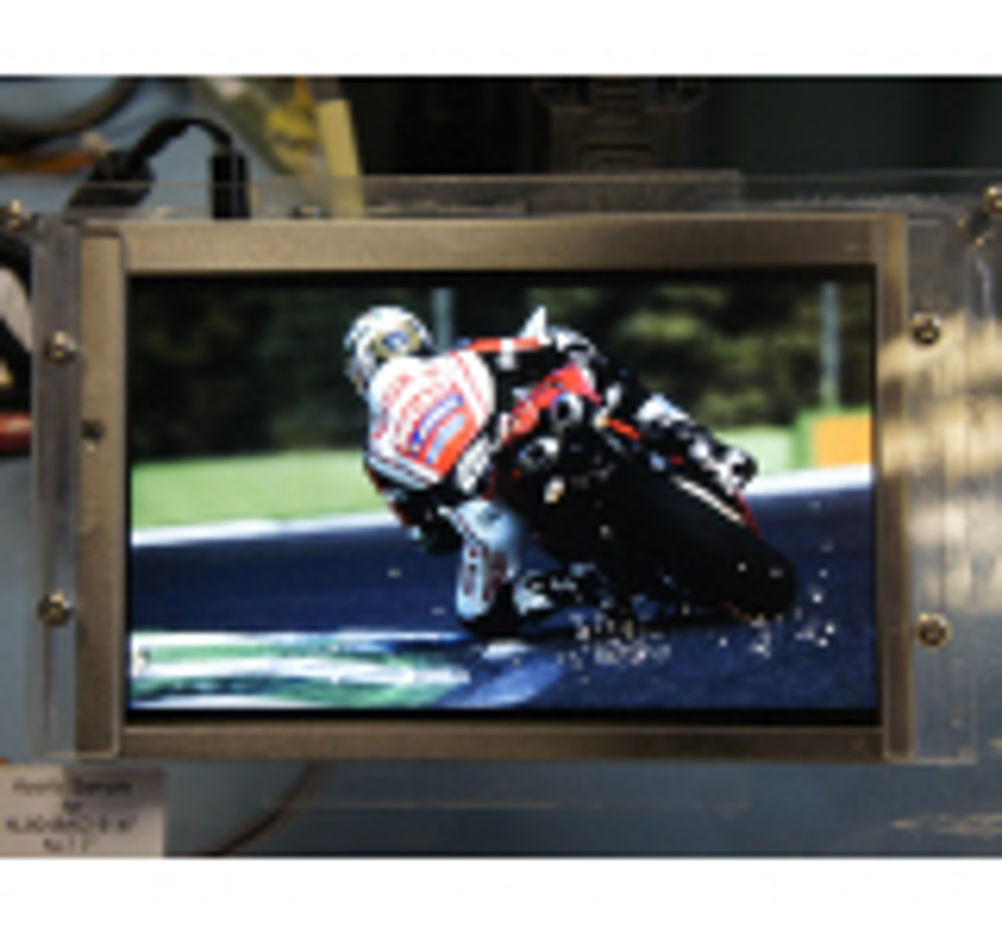

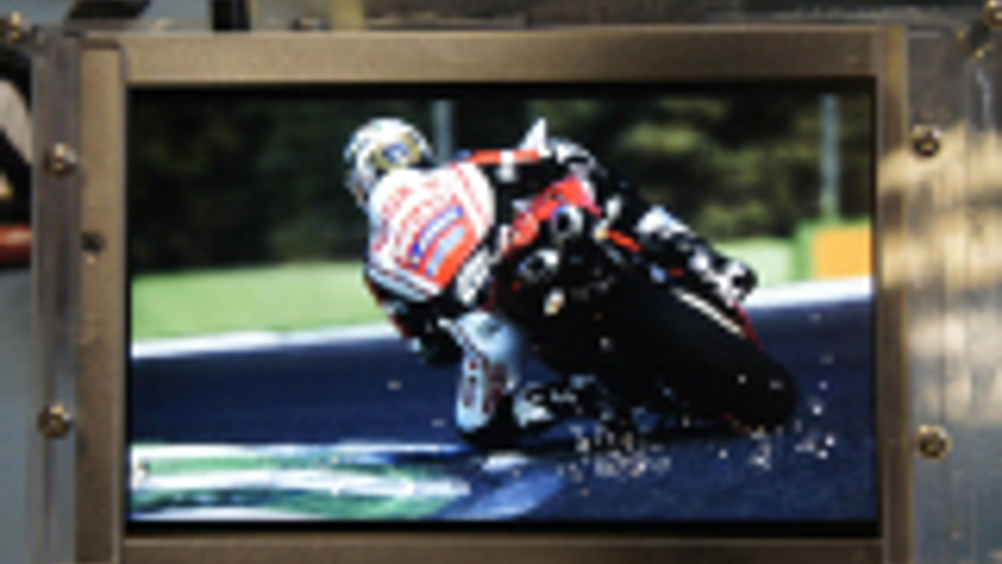

Designed to provide impressive display performance in Industrial applications restricted by space constraints, these two new panels come in either a 7 inch or 8 inch wide screen format and feature a screen brightness of 1000 cd/m².
Designed to provide impressive display performance in high ambient light the NL8048AC21-01F and the NL8048AC19-14F are compact display panels with a diagonal screen size of eight inches and seven inches respectively.
Both these panels feature a high bright LED technology backlight giving the screens a brightness of 1000cd/m² and a half-life of 100,000 hours, making it ideal for programs where a long product is a requirement.
The screens high brightness levels also make these panels ideal for applications which use a touch screen as this will offset some of the reductions introduced by the construction of the touch sensor.
The display viewing angles are 80 degrees all round and the extended temperature range of -30C to +85C makes the panels suitable for outdoor monitoring equipment or mobile applications in extreme environments.
The wide VGA (800x480 pixels) resolution panels are able to display 262,144 colours and have a pixel pitch of 0.21mm
The panels both have a single channel LVDS interface making them compatible with a range of industrial single board computers also available from Review Display Systems Ltd.
