Reliability, Flexibility and Service

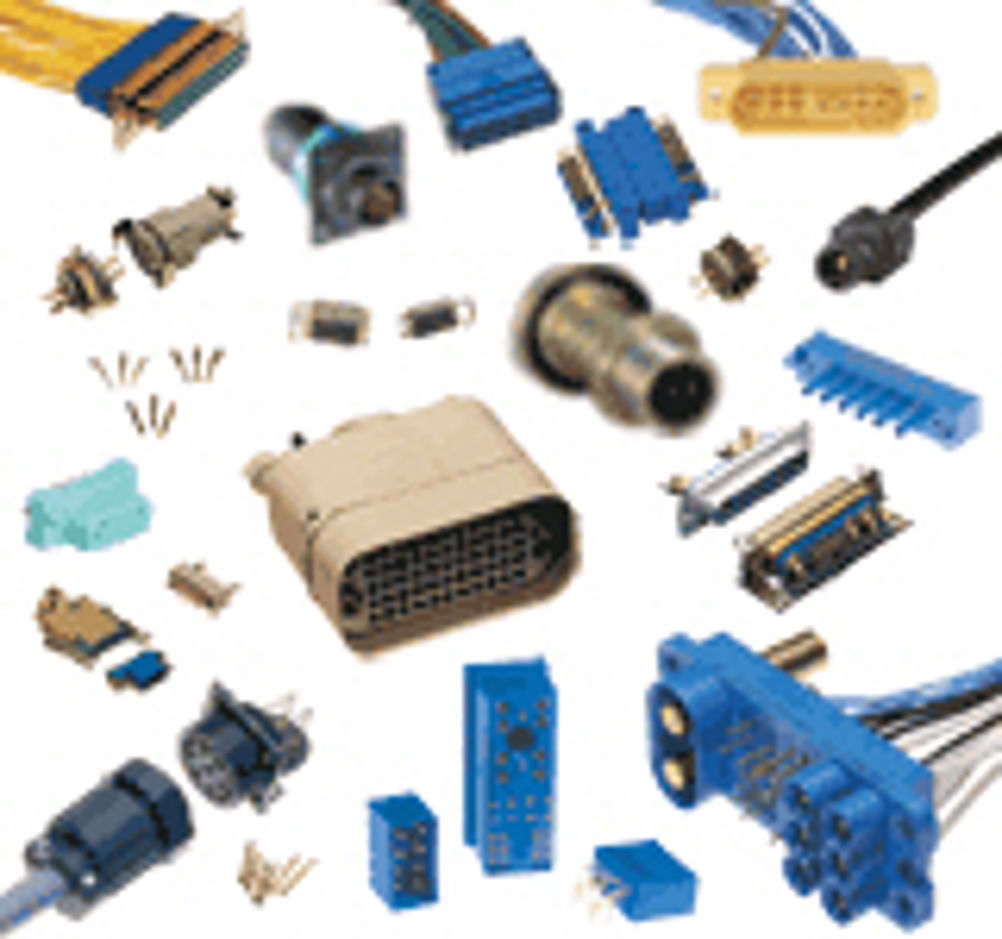

Each Positronic connector family includes a number of connector series with unique characteristics. Part numbers can be configured to meet individual application needs. A wide variety of accessories and options are available. D-Subminiature Connectors • Four performance levels for best cost/performance ratio: professional, industrial, military and space-flight • Stainless steel shells for durability in harsh environments • Vibration lock, quick release hardware • High voltage, shielded, thermocouple and air coupling contacts • Dual port connector packages including mixed density • Broadest range of accessories • Hermetically sealed options • Environmentally sealed to IP65 and IP67 Contact Sizes: 8 to 22 Current Ratings: To 100 amperes Terminations: Wire, crimp or solder; board mount solder, straight or right angle (90°); compliant press-in, straight or right angle (90°) Configurations: Standard and high density, seven connector housing sizes Qualifications: MIL-DTL-24308, GSFC S-311-P-4, GSFC S-311-P-10, SAE AS39029, DSCC Power Connectors • High reliability • Power density • Low contact resistance / low voltage drop saves energy • Hot swap capability • AC/DC operation in a single connector • Signal contacts for hardware management • Blind mating • Sequential mating • Customer designed contact arrangements • Scorpion series modular tooling, produces a one-piece insulator, which provides endless configurations. Contact Sizes: 0 to 24 Current Ratings: To 200 amperes per contact Terminations: Crimp and fixed cable connector; board mount solder, straight or right angle (90°); compliant press-in, straight or right angle (90°) Configurations: Multiple variants in a variety of package sizes Compliance: PICMG 2.11, PICMG 3.0, VITA 41, DSCC, GSFC S-311-P-4, GSFC S-311-P-10 Circular Connectors • Corrosion resistant / lightweight composite construction • EMI/RFI shielded versions • Thermocouple contacts • Environmentally sealed versions • Rear insertion/ front release of removable contacts • Two level sequential mating • Overmolded assemblies Contact Sizes: 12, 16, 20 and 22 Current Ratings: To 25 amperes nominal Terminations: Wire, crimp or solder; board mount, straight solder or right angle (90°) Configurations: Multiple variants in four package sizes Qualifications: Environmental protection to IP67 Hermetic Connectors • Electrical feed-through in vacuum applications • Leakage rate: < 5x10-9 mbar.l/s under a vacuum 1.5x10-2 mbar • Signal, power, shielded and high voltage versions available • Complete flange assembly per customer specification Contact Sizes: 8 through 22 Current Ratings: To 100 amperes nominal Terminations: Feedthrough is standard; flying leads and board mount available upon request Configurations: D-subminiature, circular, BNC and others Compliance: Space-D32 Rectangular Connectors • Two performance levels for best cost/performance ratio: industrial and military quality • A wide variety of accessories • Broad selection of contact arrangement and package sizes • Connector coding device (keying) options Contact Sizes: 16, 20 and 22 Current Ratings: To 25 amperes nominal Terminations: Wire, crimp or solder; board mount solder, straight or right angle (90°); compliant press-in, straight Configurations: Multiple variants in both standard and high densities, 30 package sizes Qualifications: MIL-DTL-28748, SAE AS39029, CCITT V.35 Customized Connectors Positronic is ready to provide variations of our standard products or to work in partnership with customers to develop products for specific applications. Cable Assemblies Save time and money. Positronic can provide cable assemblies to your specifications. We work closely with customers to: • Design assemblies in accordance with customer requirements. • Prepare cablized connector configurations and performance specifications. • Design each system in accordance with applicable customer, domestic, and international standards. • Define and conduct performance and verification testing. Mission Statement "To utilize product flexibility and application assistance to present quality interconnect solutions which represent value to customers worldwide." Service Positronic provides one-on-one customer service and a world-class web site with detailed product information. Our "complete capability" concept supports the interconnect requirements of our customers. Complete capability is defined by our in-house engineering, component manufacturing, connector assembly and technical sales support through factory direct sales people located throughout the world.
