Multilayer organic rf inductors offer high self resonance
1 min read

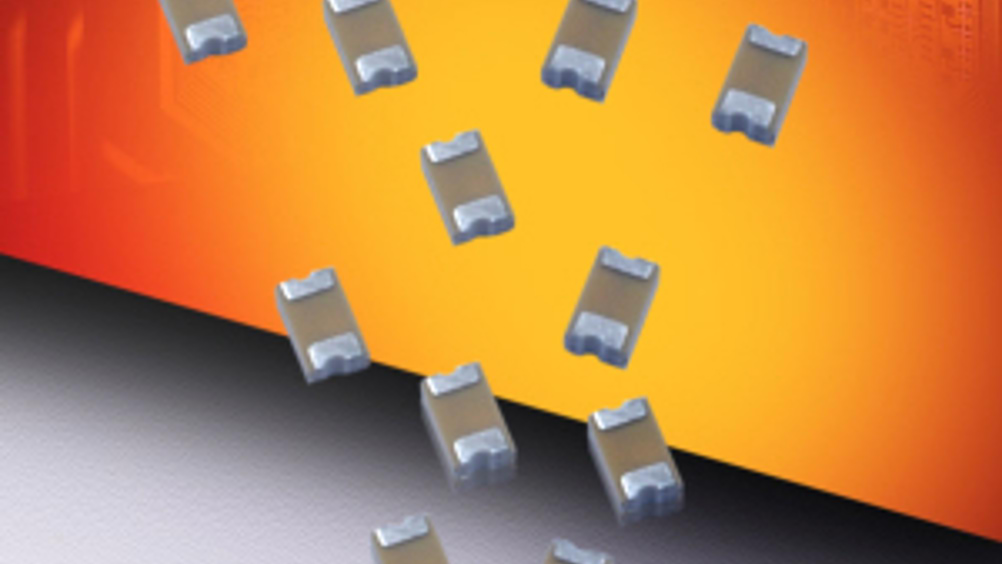

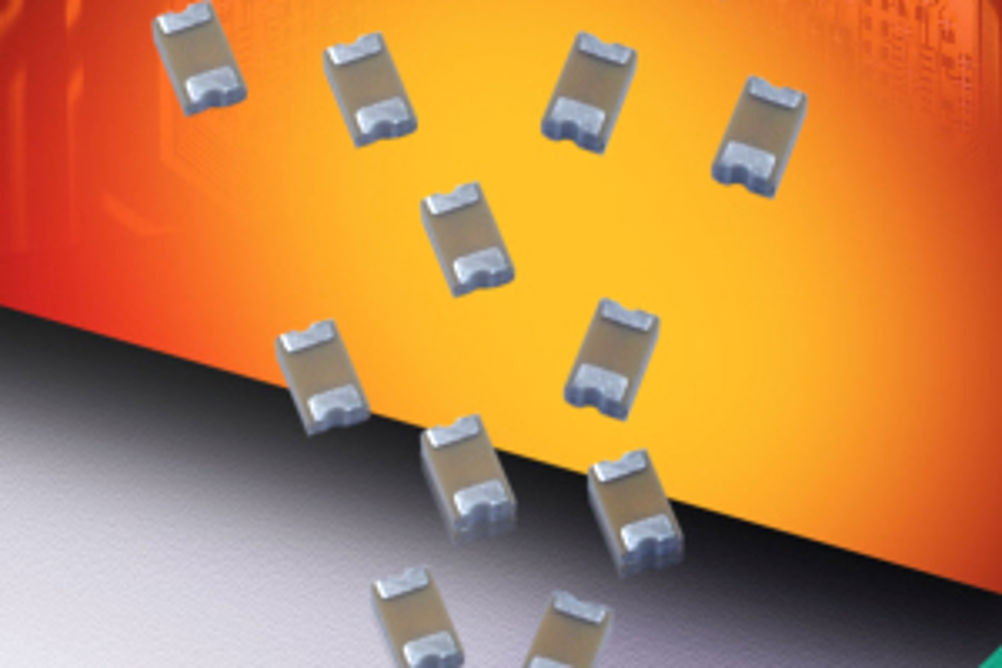

Passive components and interconnect solutions manufacturer AVX Corporation has developed a series of multilayer organic rf inductors in a 0402 case size.
Providing high Q and high self resonance, the RoHS compliant device features an inductance range of 1nH to 32nH.
"Based on its patented multilayer low loss organic (MLO) technology, these new inductors represent a paradigm shift from traditional low temperature co fired ceramic (LTCC) and thin film passive SMD components," said Larry Eisenberger, product manager at AVX. "Since copper organic inductors (COIs) are polymer based and use high conductivity copper interconnects in a multilayer fashion, the ability to fabricate these components on large area substrates and in laser direct imaging allow for improved cost versus LTCC and Thin Film Technologies."
The low profile 0402 rf inductor also offers high SRF (selfresonant frequency), and can support frequencies above 1GHz.
The 0402 inductor is suitable for rf power amplifiers, low noise amplifiers, filter networks and MRI systems, with an operating temperature between -55 and 125°C.
