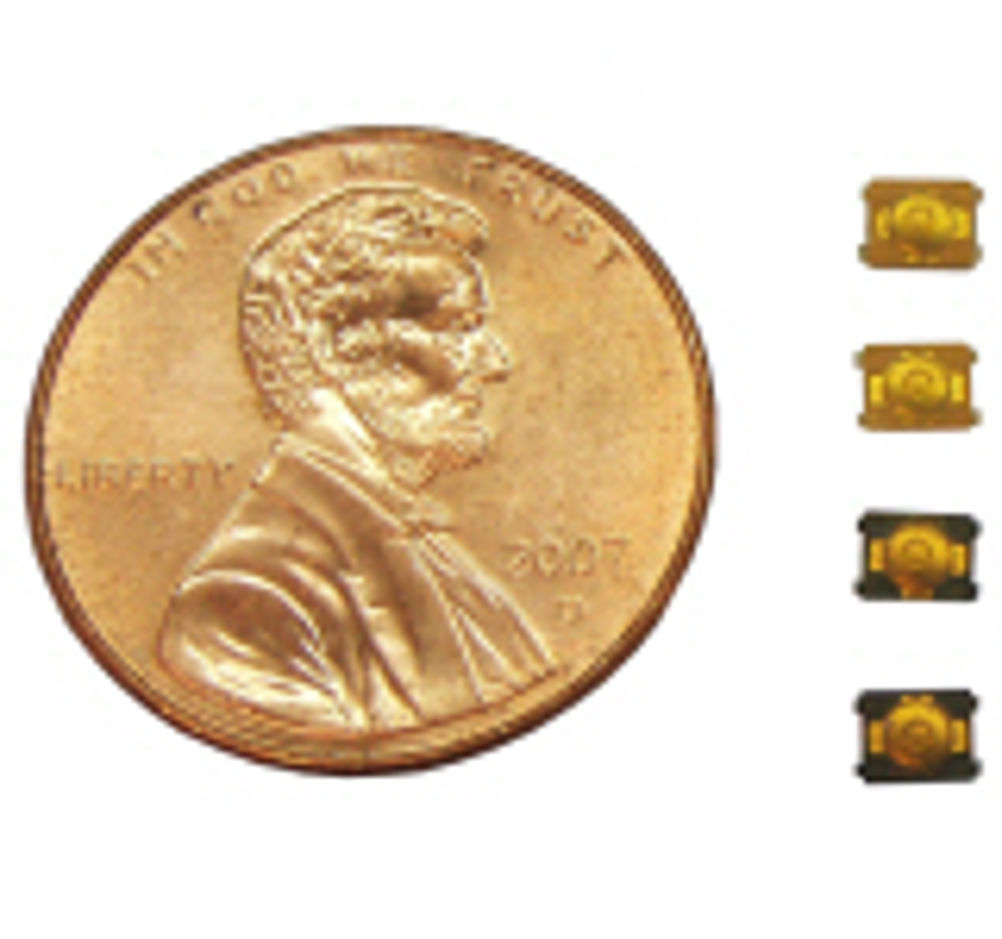

Tact switch measures 2.6 x 3mm
E-Switch has announced the smallest tact switch in its product line. The TL3700 series tact switch is 3 x 2.6 x 0.65mm and features a 100,000 cycle life expectancy and 2 different gram force options.
The series has a contact rating of 20mA 15VDC and a contact resistance (initial max) of 500milliohms. Insulation resistance is 100Megaohms min at 500Vdc.
Markets for the switch include audio/visual, computer peripherals, consumer electronics, handheld devices, medical equipment and telecommunications.
