The new surface mount HY series offers 15pF load LVCMOS output at frequencies from 1.25 to 50.0MHz over the temperature range -40 to +125°C with choice of frequency stability of ±50 and ±100ppm. Frequency stability of ±25ppm is also available over commercial (-10 to +70°C) and industrial (-40 to +85°C) ranges. MEC Europe can also provide non-standard frequency stability specifications if required, e.g. ±20 or ±30ppm.

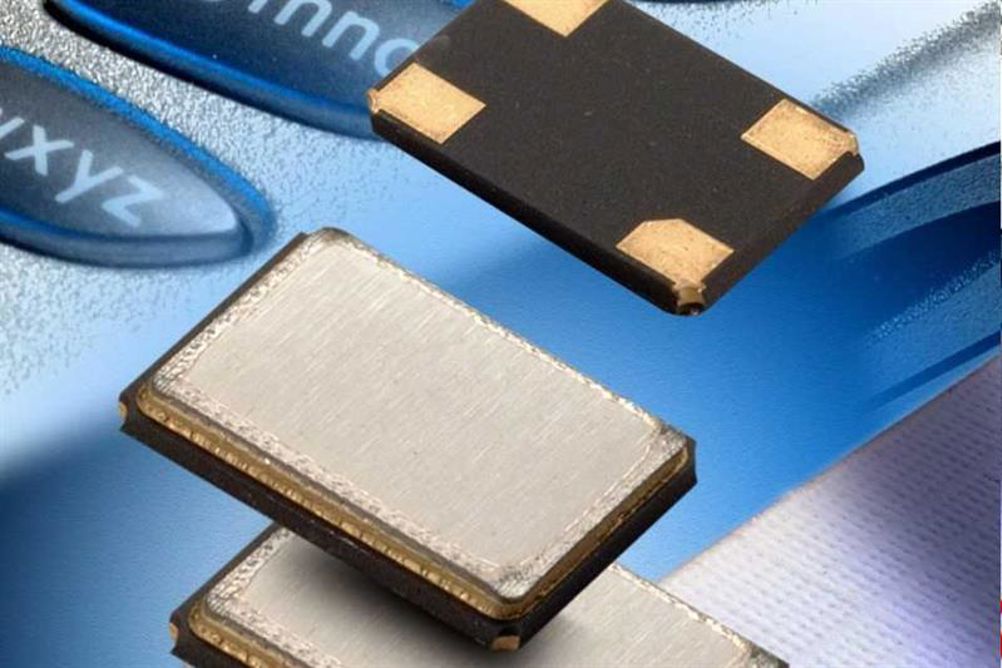

Offering phase noise characteristics of -155dBc/Hz at 10kHz and -160dBc/Hz at 100kHz offset, the new HY series oscillators are available in three package sizes 3.2 x 2.5 x1.0mm, 5.0 x 3.2 x 1.2mm and 7.0 x 5.0 x 1.4mm. Supply voltages for these are 1.8, 2.5 and 3.3V respectively and typical current consumption is 2 to 4mA from 1.25 to 19.99MHz and 4 to 6mA from 20.0 to 50.0MHz depending on package size.
RMS phase jitter is 150fs typical (12kHz to 20MHz integrated). Specifications include ageing of ±2.0ppm/year maximum for first year, start-up time of 5.0ms maximum, rise/fall time of 10ns maximum and duty cycle (symmetry) of 50% ±10% typical with ±5% available as an option.
MEC Europe is an approved supplier to the automotive industry with IATF16949 approval.
